The Mind-Triggered Dictionary: Ek BCI Blueprint

Basic concepts se lekar full Python implementation tak: jaaniye kaise eye-tracking aur brainwaves ko milakar anjan shabdon ko turant samjha ja sakta hai.

Brain Computer Interface Concept — Future of BCI: Gaming, robotics, aur healthcare mein insaani dimaag ka seedha connection.

Brain-Computer Interfaces ka Parichay

Ek BCI aapke dimaag ke electrical signals ko read karta hai (sensors ya implants ke zariye), unhe interpret karta hai, aur unhe actions mein badal deta hai. Ye aapko sirf apni soch se machine control karne ki taqat deta hai.

BCIs Kaise Kaam Karte Hain

Ye process 4 steps mein hota hai: Signal Acquisition, Feature Extraction, Translation, aur Output.

How BCI Works — BCI Workflow: Signal lene se lekar 'Hello World' output tak ka safar.

Blueprint: The Mind-Triggered Dictionary

Kalpana karein aap ek mushkil paragraph padh rahe hain. Aap ek aise shabd par rukte hain jo aap nahi jaante—jaise "Obfuscate". Aap kuch click nahi karte. Bas use dekhte hain, thoda "confusion" mehsoos karte hain, aur matlab apne aap screen par aa jata hai.

Automatic Meaning Display — User Flow: Jab aapki nazar rukti hai aur dimaag confuse hota hai, AI turant meaning dikhata hai.

The Secret Sauce: N400 Signal

Jab dimaag kisi anjan shabd ka samna karta hai, toh wo ek specific electrical spike paida karta hai jise N400 kehte hain. Ye shabd dekhne ke 400ms baad aata hai.

Device Architecture

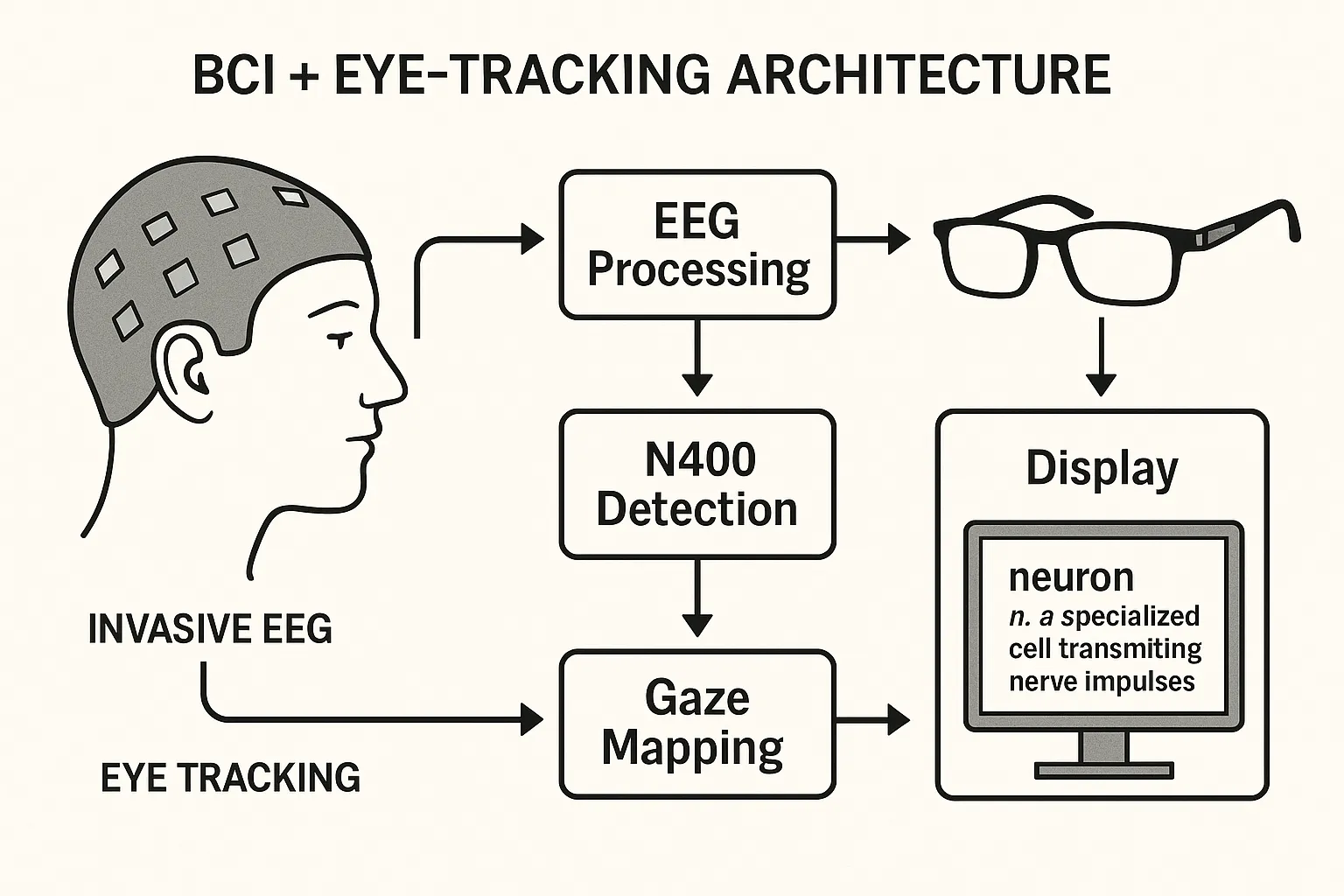

Architecture Diagram — Architecture: EEG Processing aur Eye-Tracking kaise milkar N400 detect karte hain.

Implementation: The Code

Niche Python simulation di gayi hai jo synthetic brain data generate karti hai aur "confusion" trials ko detect karti hai.

import numpy as np
import mne
from sklearn.linear_model import LogisticRegression
from sklearn.model_selection import cross_val_score, StratifiedKFold
from sklearn.preprocessing import StandardScaler

# 1. Simulation Parameters
n_channels = 8
sfreq = 250  # Hz
n_trials = 200
trial_length_sec = 1.0
n_samples = int(trial_length_sec * sfreq)
times = np.linspace(-0.1, 0.9, n_samples, endpoint=False)

# 2. N400 Waveform Define karein
def n400_waveform(t):
    return -5.0 * np.exp(-0.5 * ((t - 0.35) / 0.06)**2)

# 3. Data Create & Signal Inject karein
rng = np.random.RandomState(42)
labels = np.zeros(n_trials, dtype=int)
confusion_idx = rng.choice(n_trials, size=int(0.4 * n_trials), replace=False)
labels[confusion_idx] = 1

data = np.zeros((n_trials, n_channels, n_samples))
for i in range(n_trials):
    bg = rng.normal(size=(n_channels, n_samples)) # Simple noise
    if labels[i] == 1:
        erp = n400_waveform(times)
        for ch in range(n_channels):
            data[i][ch] = bg[ch] + erp
    else:
        data[i] = bg

# 4. Feature Extraction (Mean Amplitude 300-500ms)
tmin_idx = np.searchsorted(times, 0.3)
tmax_idx = np.searchsorted(times, 0.5)
X = data[:, :, tmin_idx:tmax_idx].mean(axis=2)

# 5. Classifier Train karein
scaler = StandardScaler()
X_scaled = scaler.fit_transform(X)
clf = LogisticRegression(solver='liblinear')
scores = cross_val_score(clf, X_scaled, labels, cv=5, scoring='roc_auc')

print(f'Mean AUC: {scores.mean():.3f}')
